Lab 7: Advanced Graphics

🧑‍💻 Make sure to finish all previous labs before continuing with this lab! It might be tempting to skip some stuff if you’re behind, but you may just end up progressively more lost … we will happily answer questions from any lab each week 😃

Note: for all plotting in this lab, be sure to use the new ggplot2 capabilities from the most recent lecture practical.

Note 2: part of learning R is learning to read documentation, so we’re going to be doing more of that again in this lab: it is not possible to cover every function, argument, etc in lectures!

5.8 Joining data frames

Before moving on to graphics, we first wrap up the new data manipulation features learned in the lecture practical.

First, we load the tidyverse package since we’ll need it for both the data manipulation and advanced graphics functionality, then load some miniature practice data for joining which is about band members of the Beatles 🪲 and Rolling Stones 🗿 🎶

library("tidyverse")

data("band_members", package = "dplyr")
data("band_instruments", package = "dplyr")
data("band_instruments2", package = "dplyr")

Exercise 5.65 Look at the three data frames you loaded above, band_members, band_instruments and band_instruments2.

  1. Join the band_members and band_instruments data frames so that you have a single data frame containing the name, band and instrument of just the 3 people who play an instrument.
  2. This time, using the band_members and band_instruments2 data frames, create a single data frame containing all the people who have a known band, together with what instrument (if any) they play (Hint: pay close attention to the variable names, you may need to make changes before joining)
  3. Finally, using either instruments data frame, create a data frame containing only complete information for people with a known band and who play an instrument.

Click for solution

## SOLUTION

# Look at data
band_members
# A tibble: 3 × 2
  name  band
  <chr> <chr>
1 Mick  Stones
2 John  Beatles
3 Paul  Beatles
band_instruments
# A tibble: 3 × 2
  name  plays
  <chr> <chr>
1 John  guitar
2 Paul  bass
3 Keith guitar
band_instruments2
# A tibble: 3 × 2
  artist plays
  <chr>  <chr>
1 John   guitar
2 Paul   bass
3 Keith  guitar
# (i) do the easy join
right_join(band_members, band_instruments)
Joining with `by = join_by(name)`
# A tibble: 3 × 3
  name  band    plays
  <chr> <chr>   <chr>
1 John  Beatles guitar
2 Paul  Beatles bass
3 Keith <NA>    guitar
# (ii) do the harder join
# There are many ways to do this, this is just one example
left_join(band_members,
          band_instruments2 |>
            select(name = artist, plays))
Joining with `by = join_by(name)`
# A tibble: 3 × 3
  name  band    plays
  <chr> <chr>   <chr>
1 Mick  Stones  <NA>
2 John  Beatles guitar
3 Paul  Beatles bass
# (iii)
inner_join(band_members, band_instruments)
Joining with `by = join_by(name)`
# A tibble: 2 × 3
  name  band    plays
  <chr> <chr>   <chr>
1 John  Beatles guitar
2 Paul  Beatles bass


In fact, there is a very handy extra argument we didn’t cover in lectures which all the _join() functions support, called by. This allows you to avoid having to do the renaming of columns like you did in answering (ii) above.

Exercise 5.66 Look at the documentation for left_join and read the explanation in the Arguments section for by. Use this, to join the band_members and band_instruments2 data frames, without renaming the artist column first.

Click for solution

## SOLUTION

# Compare this to what you did in (ii) above
left_join(band_members, band_instruments2, by = c("name" = "artist"))
# A tibble: 3 × 3
  name  band    plays
  <chr> <chr>   <chr>
1 Mick  Stones  <NA>
2 John  Beatles guitar
3 Paul  Beatles bass


5.9 Car efficiency 🚗🏎🚙

Load the mpg data in the ggplot2 package to examine some data on fuel efficiency.

data("mpg", package = "ggplot2")

Look at the help file to see the variables available (recall: ?ggplot2::mpg) … you’ll need to map the plots requested below to the correct variable from the documentation.

Exercise 5.67 Produce a scatter plot of the fuel efficiency on a highway (motorway) against the engine’s size (aka displacement).

  1. There are a few vehicles with large engines that have unusually high fuel efficiency for such big engines. Colour the points by the type of car. Can you explain these cars?

  2. To make this even clearer, remove the colouring but split the plot into facets where you have a graphic per car type.

  3. Add to this collection of plots the fuel efficiency for city driving, coloured in red. Update the y-axis to be called “Fuel efficiency” to reflect that it is not only the hwy variable plotted now.

Click for solution

## SOLUTION

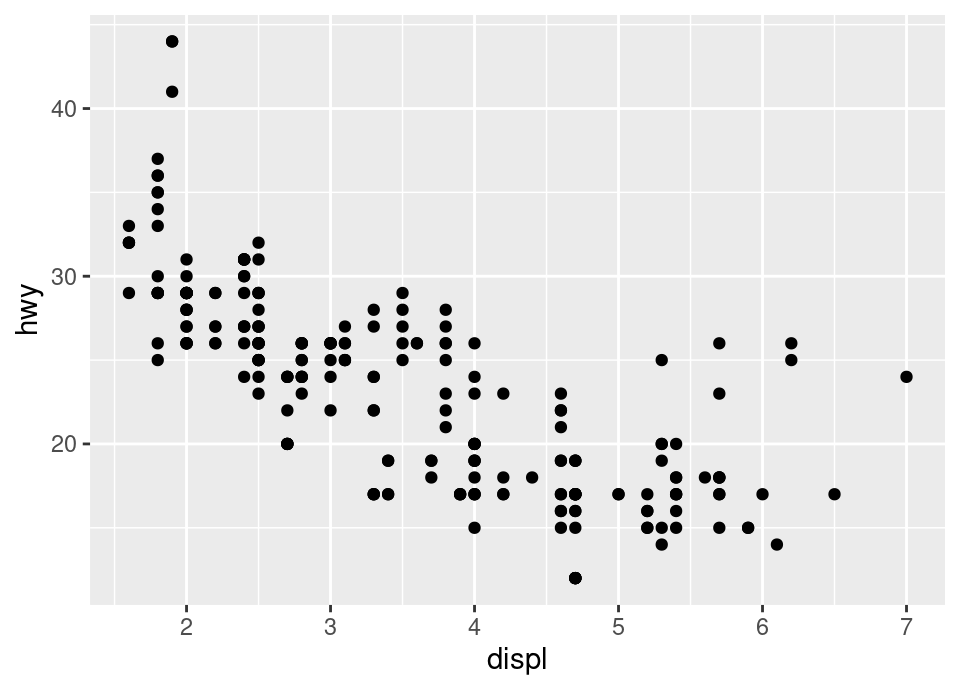

# Initial question
ggplot(mpg, aes(x = displ, y = hwy)) +
  geom_point()

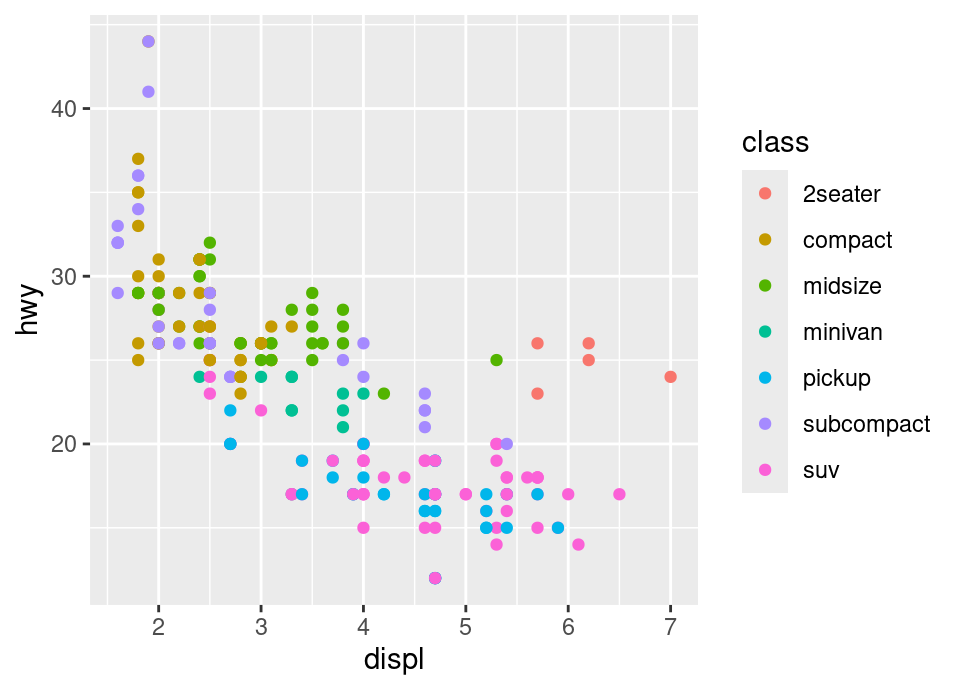

# i) We see from the documentation that the car type is in variable "class" so
#    we add an aesthetic for colour with that variable in the geom
ggplot(mpg, aes(x = displ, y = hwy)) +
  geom_point(aes(colour = class))

We notice that 5 of the 6 points which have a large engine and higher than expected efficincy are 2-seater cars … so these are probably sports cars which are lighter and despite having large engines use slightly less fuel.

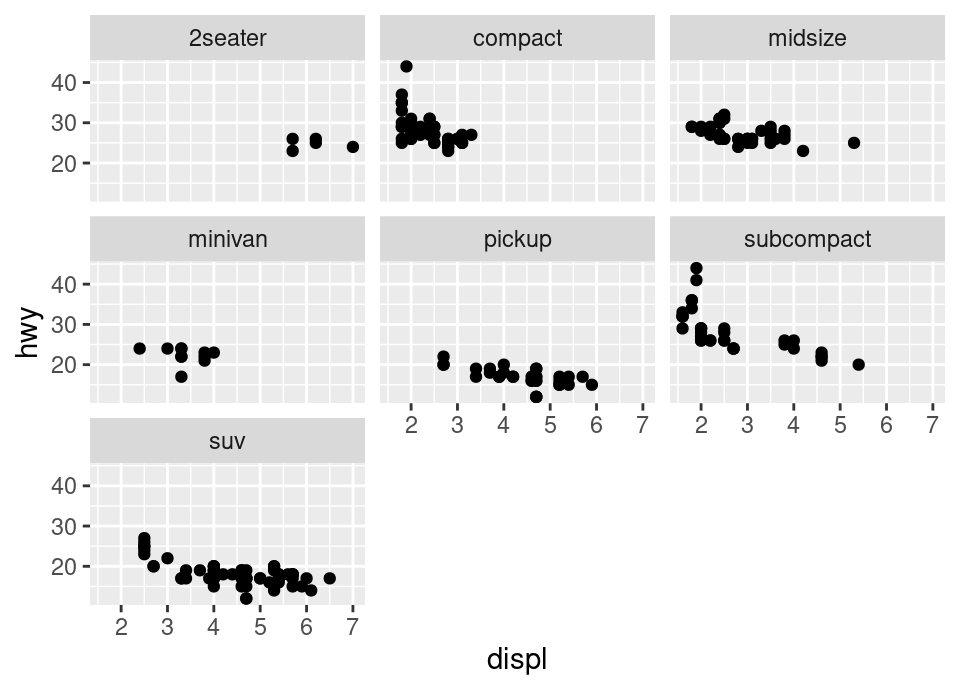

# ii)
ggplot(mpg, aes(x = displ, y = hwy)) +
  facet_wrap(~ class) +
  geom_point()

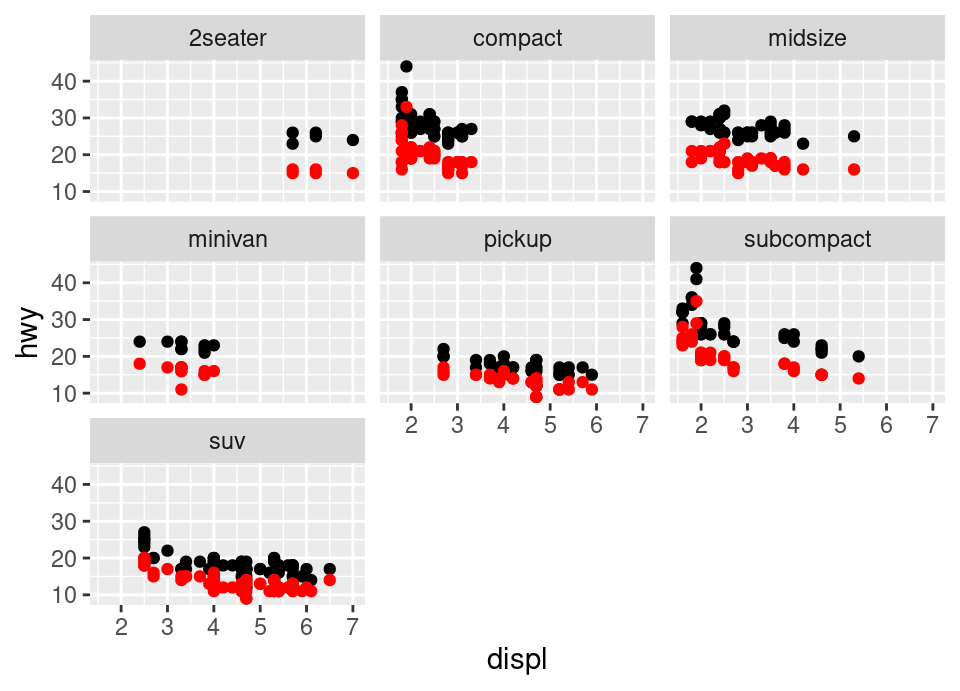

# iii)
# Now we're adding another geom_point, overriding the y mapping with the cty
# variable, and putting the colour argument *outside* the aesthetic because it
# applies to all these points and is not data dependent
ggplot(mpg, aes(x = displ, y = hwy)) +
  facet_wrap(~ class) +
  geom_point() +
  geom_point(aes(y = cty), colour = "red")

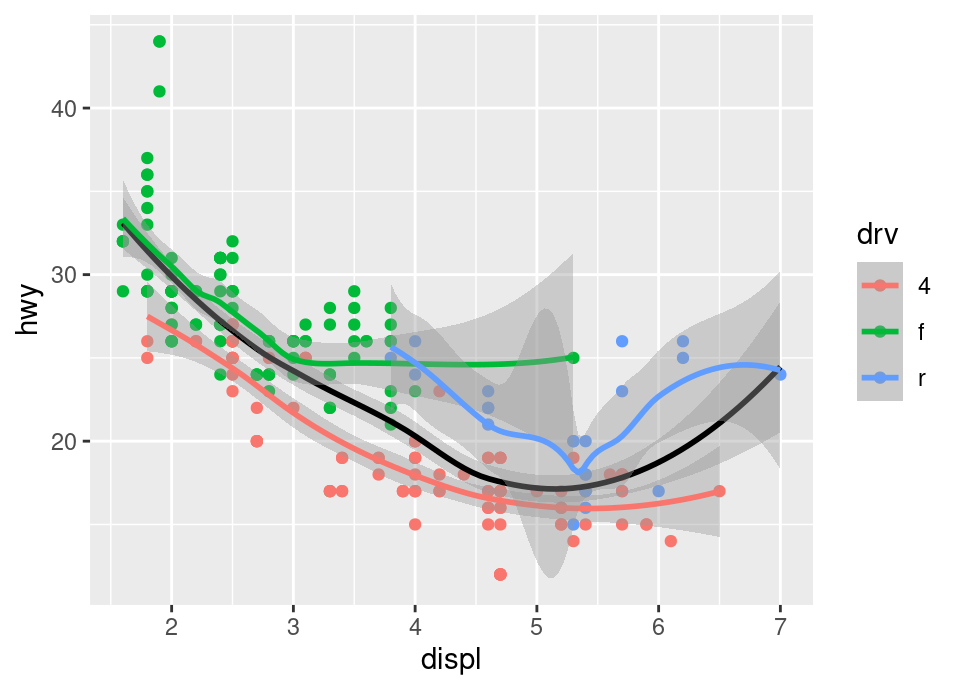

Exercise 5.68 Write the code to produce the following plot:

The black line is a smoother of the whole data, whilst the coloured lines are smoothers only for those coloured points.

Click for solution When producing this we need to remember the rules ggplot2 uses. We can’t put the colour in the ggplot() plot creation call, because then it will apply to all geoms (and we need the black smoother not to be split by drive train).

Therefore, we put just x and y in the ggplot() call, add the points with the additional colour aesthetic, then add the black smoother line with the colour not specified as an aesthetic because it applies to all the data (instead, just a direct argument), then finally add another smoother with the colour in an aesthetic so that we get a smoother per drive train!

## SOLUTION

ggplot(mpg, aes(x = displ, y = hwy)) +
  geom_point(aes(colour = drv)) +
  geom_smooth(colour = "black") +
  geom_smooth(aes(colour = drv))

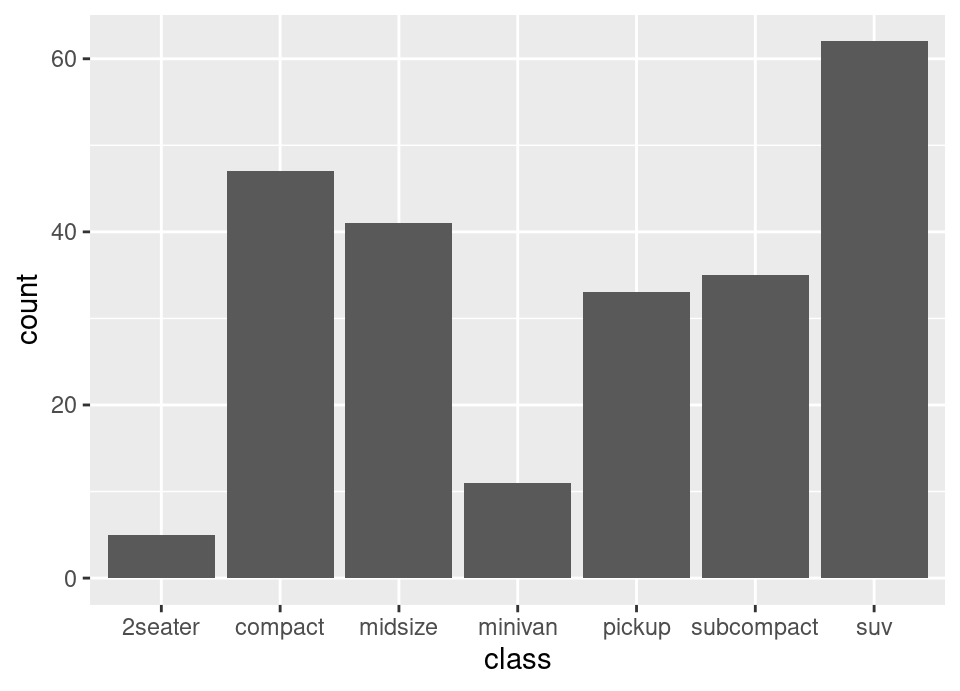

Exercise 5.69 Produce a bar plot of the count of the number of each type of vehicle in the data by using the Geom geom_bar(), with aesthetic x set to the vehicle type (NB: this question is to help you check if you are starting to understand the plotting system, because even though we didn’t show an example of a bar plot, this sentence alone should be enough information without needing to look at the documentation … the plotting system follows a coherent set of rules for all plot types!)

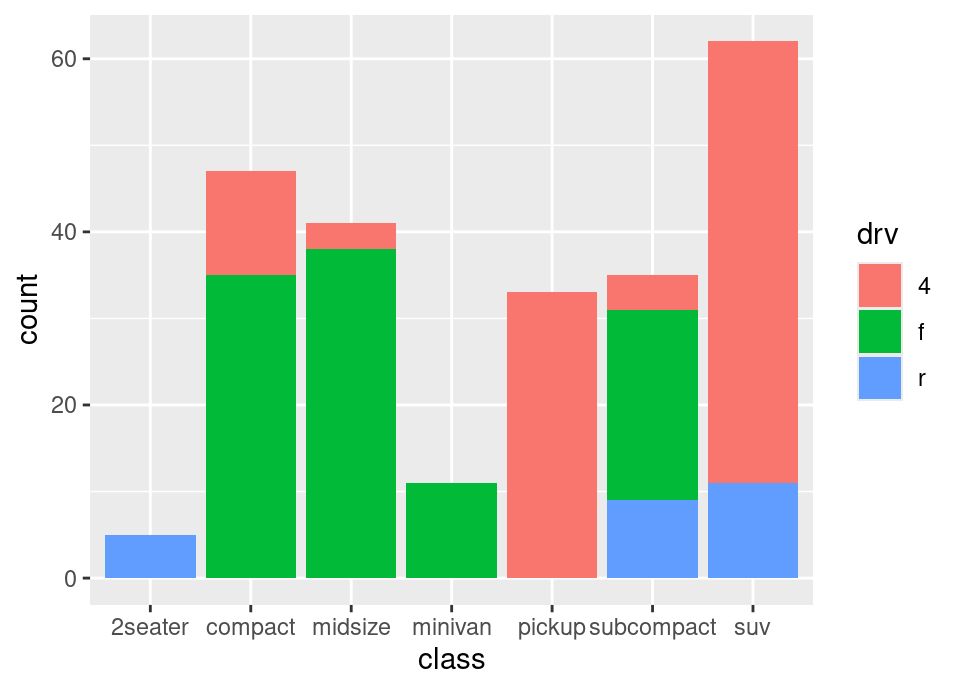

Make a second version where you also add an aesthetic fill which is set to the variable drv. What is this showing?

Click for solution

## SOLUTION

# 1.
ggplot(mpg, aes(x = class)) +
  geom_bar()

# 2.
ggplot(mpg, aes(x = class, fill = drv)) +
  geom_bar()

Each bar is still the same height as in the first bar plot, but now it is broken down to show how many of each type of car is 4-wheel, front wheel and rear wheel drive.


5.10 New York City flights 🛫

We return to the NYC flights dataset, now knowing enough to try some new things with it. Recall how to load it from the last lab:

data("flights", package = "nycflights13")

There are in fact additional data frames in the same package.

Exercise 5.70 By looking at the help file for the package or otherwise, find the names of all the data frames in the nycflights13 package and load them.

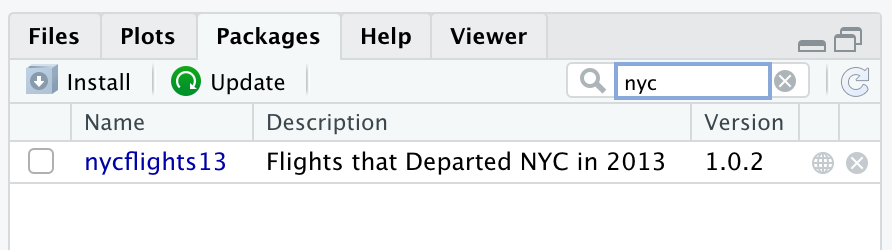

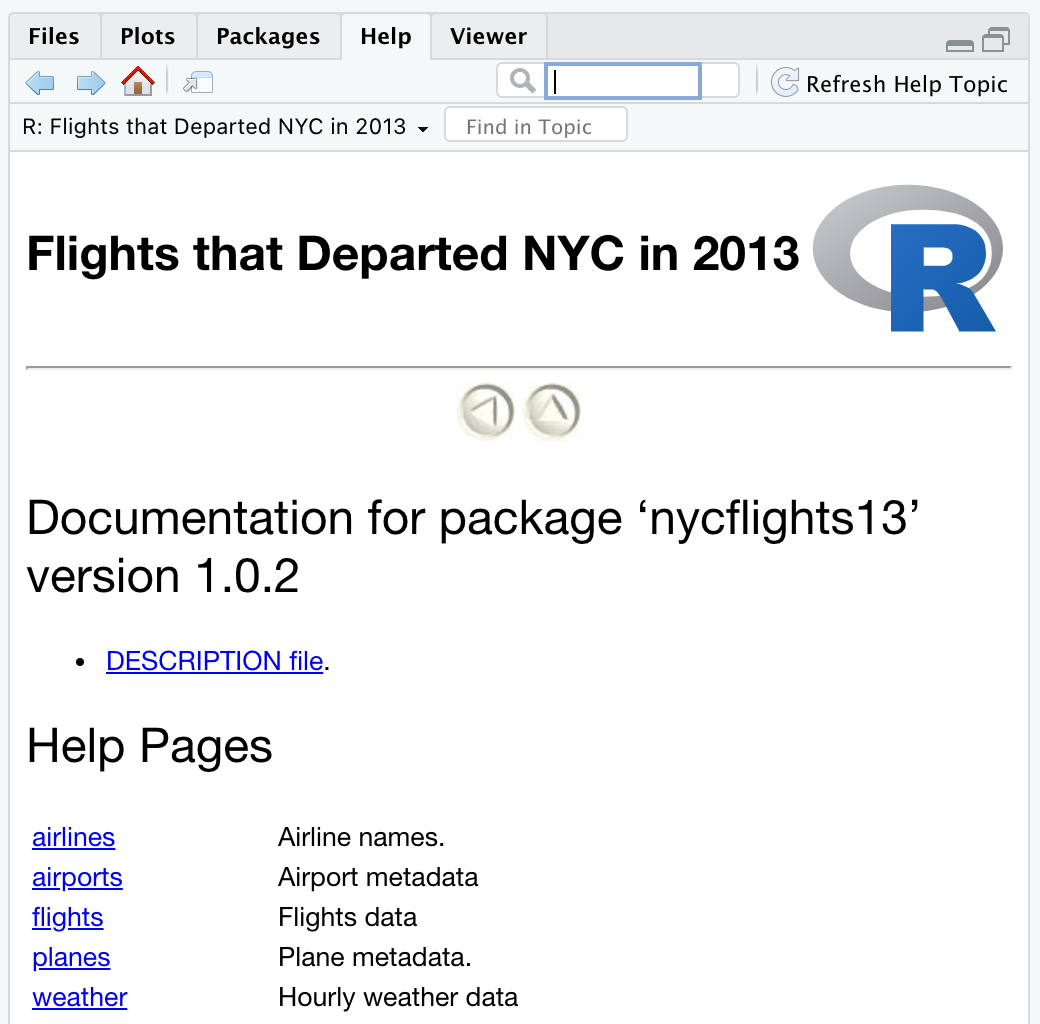

Click for solution The easiest way to find the help file for a package is to go to the packages tab, search for the package, and click on the name …

… which reveals the 5 data frames in the package …

So, we can load the other 4 with:

data("airlines", package = "nycflights13")
data("airports", package = "nycflights13")
data("planes", package = "nycflights13")
data("weather", package = "nycflights13")

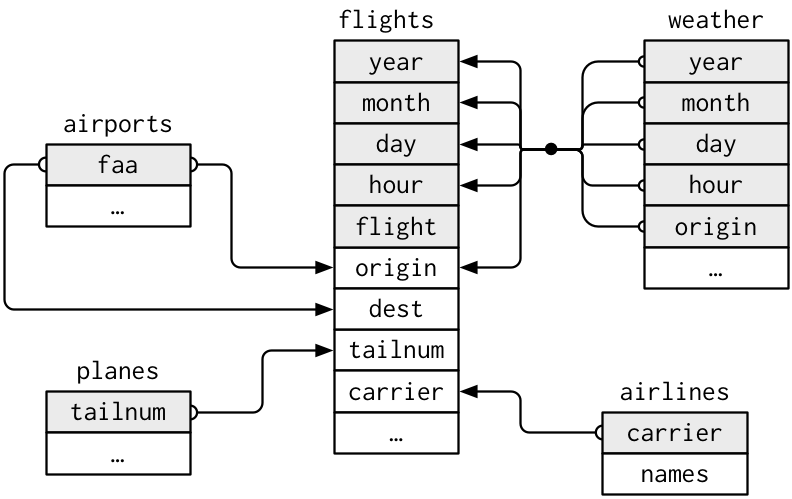

This additional data has what is called a “relational” structure, meaning that there is a variable in one table that is a “key” to the entry in another, as will be explained by example in a moment. First, this is the structure between the various flight data sets:

Image credit: https://github.com/hadley/r4ds CC BY-NC-ND 3.0 US

For example, this means that the faa column in the airports data set will contain unique values which match (possibly repeated) entries in the origin and dest columns in flights. Consequently, the airports data frame can be thought of as a way to look up the name (and other information) about a short airport code which is listed in the flights data.

Why not just have all that airports data in the flights data frame?! Well, there are many flights associated with an airport, but the airport information is static and doesn’t change from one flight to the next (eg name, location etc don’t change between flights!). Therefore, storing this directly in additional columns of the flights data frame would cause lots of redundant repeated information. It is usually best practice to have this information in separate data frames in this way, and to just perform the necessary joins (as we learned in lectures!) where needed.

Exercise 5.71 Without running it, what does the following code do?

routes <- flights |>
  group_by(dest) |>
  summarise(n = n())

Now run that code and then create a data frame airports2 where you add a new column to airports containing the total number of flights between any New York airport and that destination (with NA if there are no flights).

Click for solution The code shown will create a data frame called routes which contains 2 columns, dest and n, which shows the total number of flights that year between any New York airport (recall the origin is always one of the 3 New York airports) and the different destination airports in the flights data.

## SOLUTION

routes <- flights |>
  group_by(dest) |>
  summarise(n = n())

# Now, to create airports2 we need to use the new "by" argument we learned in
# the second exercise in this lab!
airports2 <- left_join(airports, routes, by = c("faa" = "dest"))

# Just look at a few rows to check it ... don't worry about NAs in the last
# column, these are just airports that had no flights to them from New York!
head(airports2)
# A tibble: 6 × 9
  faa   name                             lat   lon   alt    tz dst   tzone     n
  <chr> <chr>                          <dbl> <dbl> <dbl> <dbl> <chr> <chr> <int>
1 04G   Lansdowne Airport               41.1 -80.6  1044    -5 A     Amer…    NA
2 06A   Moton Field Municipal Airport   32.5 -85.7   264    -6 A     Amer…    NA
3 06C   Schaumburg Regional             42.0 -88.1   801    -6 A     Amer…    NA
4 06N   Randall Airport                 41.4 -74.4   523    -5 A     Amer…    NA
5 09J   Jekyll Island Airport           31.1 -81.4    11    -5 A     Amer…    NA
6 0A9   Elizabethton Municipal Airport  36.4 -82.2  1593    -5 A     Amer…    NA


Install the maps package:

install.packages("maps")

The maps package contains spatial information at various levels (national, regional, etc) that allows us to plot mapping data using the Geom geom_polygon.

Run the following code to produce a map of the USA:

# Get the latitude and longitude coordinate for mainland America:
usa <- map_data("usa")

# Plot these using geom_polygon
ggplot() +
  geom_polygon(aes(x = long, y = lat), data = usa, fill = "darkgreen")

Do you see how this works? Look at the usa data frame and it is just a collection of coordinates defining the outline of the country!

Note that you can override the default data set for any Geom using the data = argument, which is what we did here (ie we did not specify the data or mappings in the opening ggplot() call, but overrode them in the geom_polygon() call, because we want to reserve the default dataset for other plotting in a minute …)

Exercise 5.72 What are the maximum and minimum longitude in the usa dataset, defining the most westerly and easterly longitudes of mainland America?

Use the answer to the above to overwrite your airports2 dataset, removing any airports not within the range of longitudes for mainland America.

Click for solution

## SOLUTION

# Check the names of variables
names(usa)
[1] "long"      "lat"       "group"     "order"     "region"    "subregion"
# Range of longitudes:
min(usa$long)
[1] -124.6813
max(usa$long)
[1] -67.00742
# Update airports2 data to remove non-mainland US airports
# Note: if you look at the airports2 data frame, it abbreviates longitude to
#       lon, whereas the map data abbreviated it to long!  Argh!  Care needed :)
airports2 <- airports2 |>
  filter(lon > min(usa$long) & lon < max(usa$long))


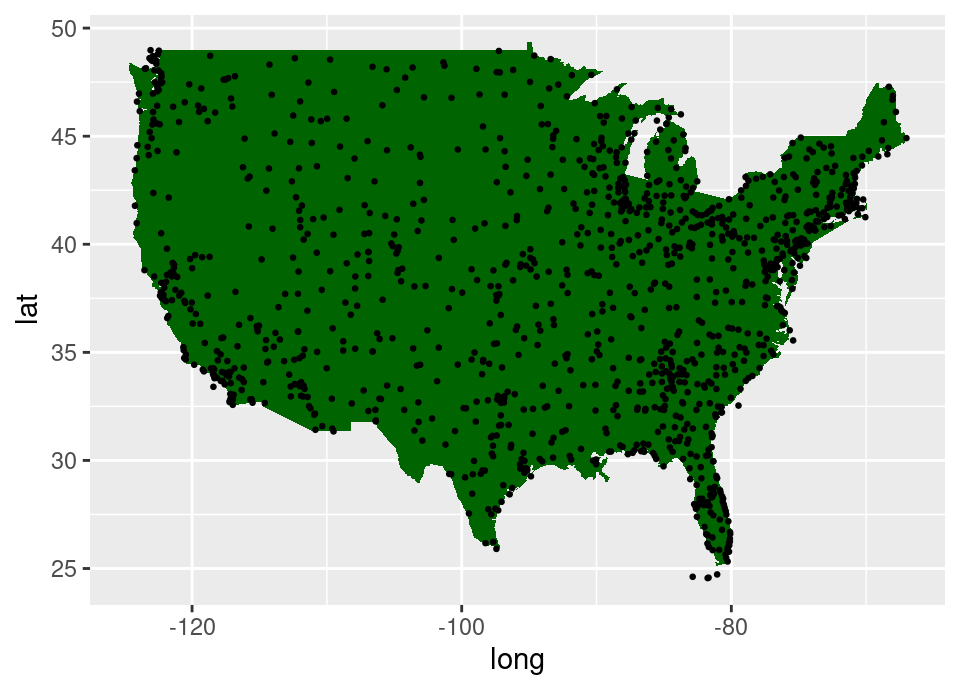

Exercise 5.73 Add the airports2 dataset to the ggplot() call which creates the map above, then plot the latitude/longitude location of all mainland US airports by adding a geom_point() layer to create a scatterplot over the map. Change the size of the points to be half the default.

Click for solution

## SOLUTION

ggplot(airports2) +
  geom_polygon(aes(x = long, y = lat), data = usa, fill = "darkgreen") +
  geom_point(aes(x = lon, y = lat), size = 0.5)

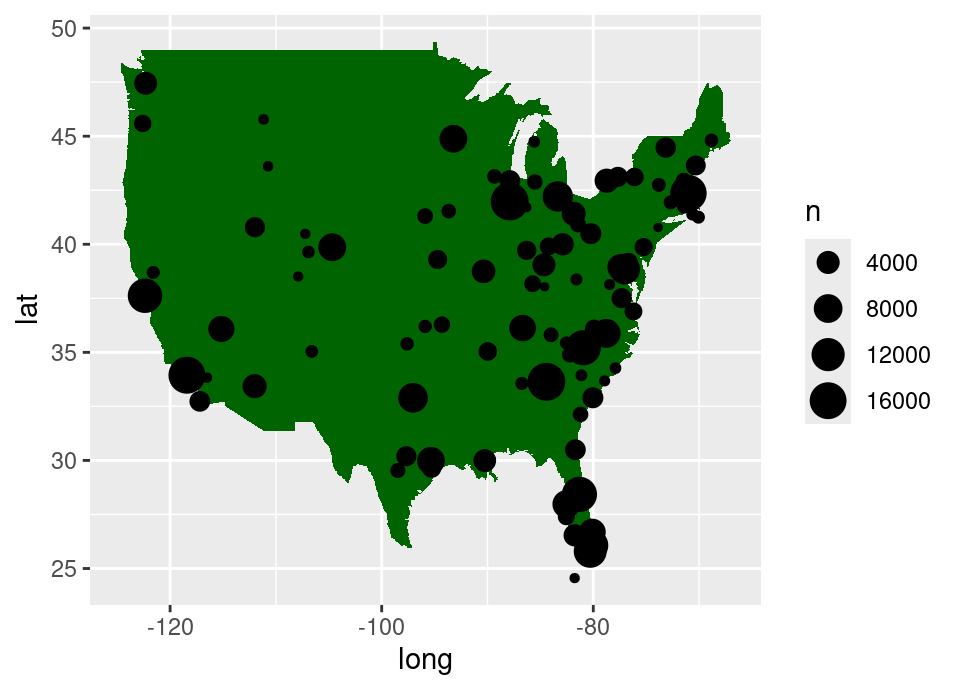

Exercise 5.74 Finally, update the geom_point layer by removing the fixed size and adding a size aesthetic linked to the variable n which we created earlier. What does this graphic now show?

Click for solution

## SOLUTION

ggplot(airports2) +
  geom_polygon(aes(x = long, y = lat), data = usa, fill = "darkgreen") +
  geom_point(aes(x = lon, y = lat, size = n))
Warning: Removed 1096 rows containing missing values or values outside the
scale range (`geom_point()`).

This graphic now shows the location of only the mainland US airports which have flights to/from any of the New York city airports, with the size of the point denoting the number of flights (larger dots indicate more flights to/from New York annually).


🏁🏁 Done, end of lab! 🏁🏁
